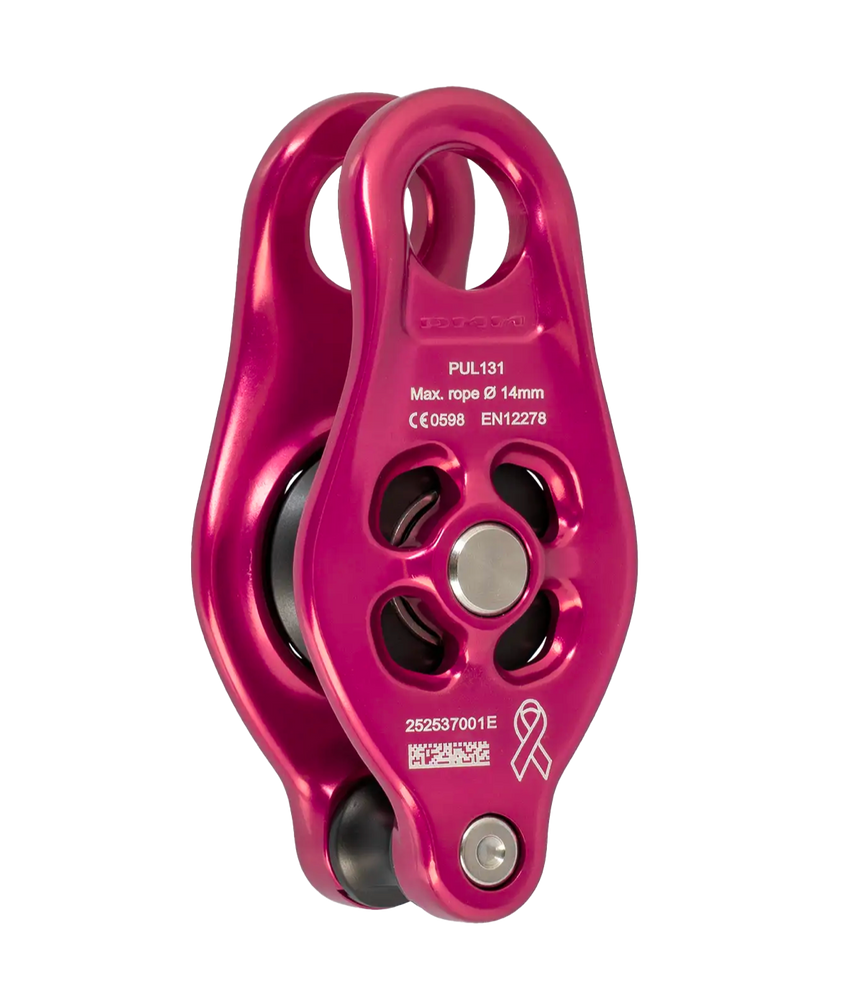

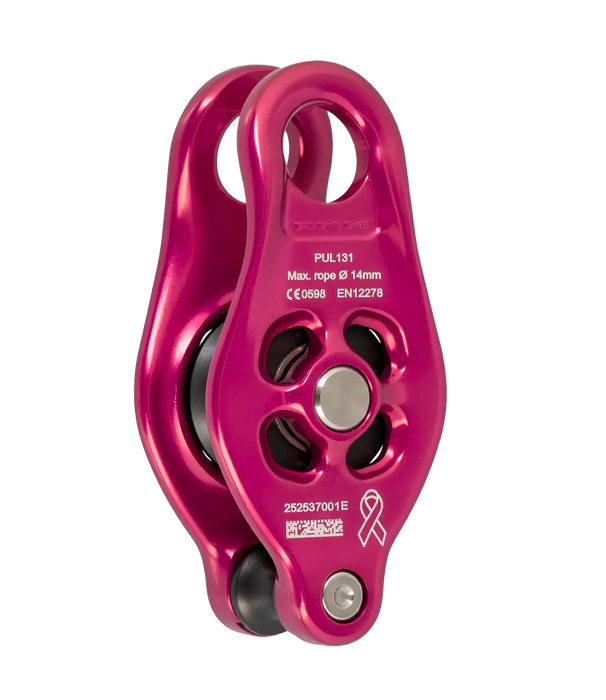

The Pinto (Pulley I Need To Own) is a DMM classic that recently got a makeover. Keeping the same compact and lightweight form of the original Pinto but fitting it with efficient ball bearings means it does everything it always has done, just better than ever. Its smooth lines, textile friendly connection and a full strength becket, make the Pinto an incredibly versatile pulley that works well in most moving rope systems.
- Full strength attachments at eye and becket provide a wide range rigging options
- Fixed sideplate design is easy to clip into and load onto tensioned ropes
- Hot forged and robust, with smooth rope and textile friendly fairleads and edges
- Connect directly in with textile components for extra versatility: increase lift height, minimise space required, or enhance tolerance to torsion
- Recessed sheave design helps rope feed smoothly from all angles
- Sealed ball bearings for high efficiency and low maintenance
- Optional spacer available separately for use with rope connection
- Tamperproof construction
- Made in Wales, and certified for peace of mind
Color: Pink
Weight: 117g (4.13 oz)
Dimensions: 95 x 45 x 34mm (3.75 x 1.78 x 1.34 inches)
MBS: 35kN (7,868.31 lbs)
MBS (Becket): 25kN (5,620.22 lbs)
WLL: 5kN (1,124 lbs)
WLL (Becket): 5 kN (1,124 lbs)
Rope Diameter: 14mm Max
Sheave Diameter: 29mm
Certification: EN12278:2007
