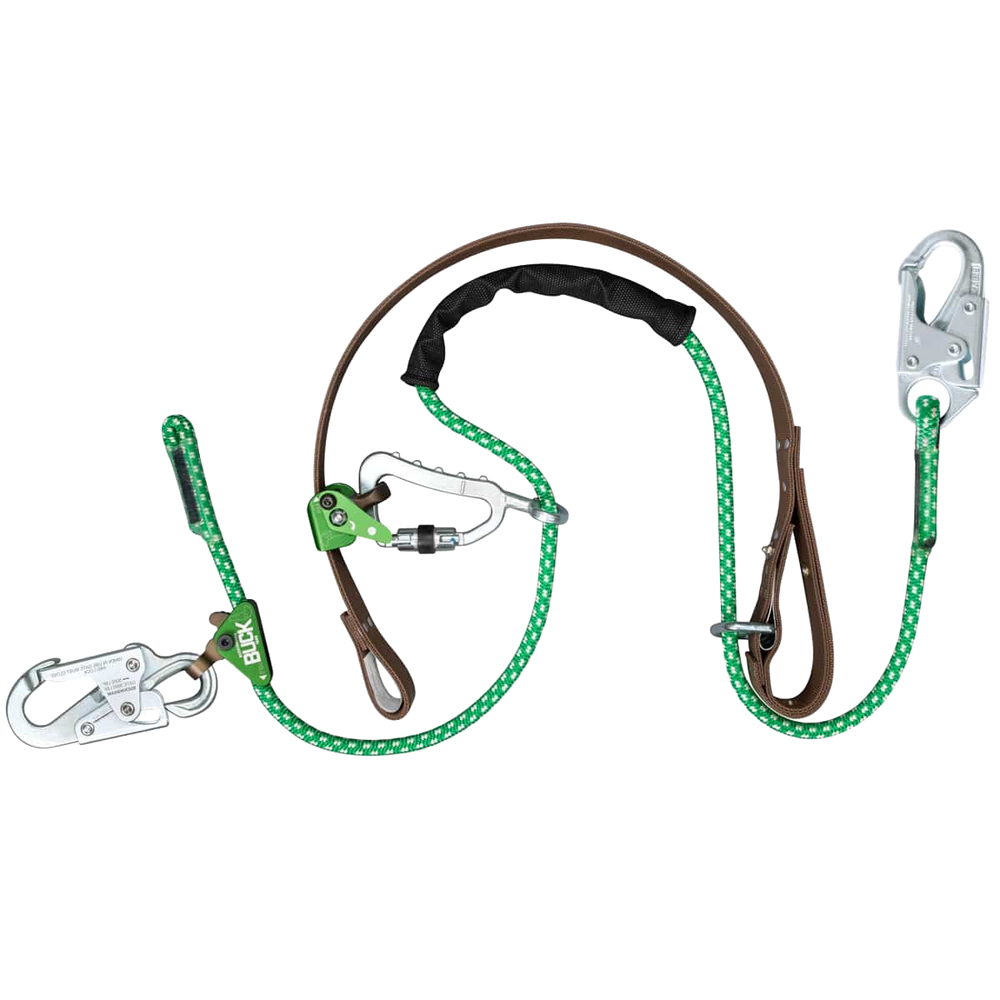

Buckingham EZ Squeeze™ Wood Pole Fall Restrictor – Rope Inner Strap, Distribution (490DRMS)
The Buckingham 490DRMS EZ Squeeze™ is a lightweight wood pole fall restrictor engineered for distribution climbing. Featuring Buckingham’s patented WebGrab™ with the new BuckHorn™ Adjustment Lever, the outer strap can be adjusted with one hand — without removing your weight from the device. A flick of the wrist adjusts the strap in; a tap of the BuckHorn™ adjusts it out. The BuckGrab™ provides easy one-handed adjustment of the rope inner strap. Rated for a 350 lb user when fully equipped and manufactured to meet ASTM F887 requirements.
Key Features
- BuckHorn™ Adjustment Lever — one-handed outer strap adjustment without removing weight from the device; flick in, tap out
- Improved Loop Handle — reinforced for more rigidity; repositioned forward to simulate the classic “hitchhiking” feel, improve lateral movement, and prevent rope contact with the handle
- BuckGrab™ inner strap adjustment — easy one-handed adjustment of the rope inner strap; configurable for rope or web strap based on user preference
- One disconnect point — single connection when climbing over an obstruction for simplified transitions
- Ambidextrous design — easily used by right- or left-handed climbers
- Red warning center — visual wear indicator within straps to facilitate inspection for excessive wear
- 3,600 lbf gate-rated hardware — steel snap hook body belt connector
- 350 lb user weight capacity — rated for fully equipped user
- ASTM F887 compliant — manufactured, tested, and inspected to meet applicable standard requirements
Specifications
| Attribute | Detail |
|---|---|
| Product No. | 490DRMS |
| Product Name | EZ Squeeze™ with Rope Inner Strap for Distribution |
| Body Belt Connector Type | SnapHook |
| Body Belt Connector Material | Steel |
| Inner Strap Length | 70" |
| Inner Strap Material | Rope |
| Inner Adjustment Type | Aluminum BuckGrab™ |
| Outer Strap Length | 34.5" |
| Outer Strap Material | Neoprene Impregnated Nylon |
| Outer Strap Adjustment Type | Aluminum WebGrab™ with BuckHorn™ |
| Pole Size Capacity | Up to Class 1, 65' pole & 50" circumference |
| Weight | 5.5 lb |
| User Weight Capacity | 350 lb (fully equipped) |
| Gate Rating | 3,600 lbf |
| Standard | ASTM F887 |
Quick Decision Guide
- Climbing wood distribution poles? — The 490DRMS is specifically configured for distribution climbing applications
- Need one-handed strap adjustment while on the pole? — The BuckHorn™ lever and BuckGrab™ both allow one-handed adjustment without removing your weight
- Prefer a rope inner strap? — The 490DRMS ships with a 70" rope inner strap; the BuckGrab™ also supports web strap configuration
- Climbing poles up to Class 1, 65' with up to 50" circumference? — Yes, the 490DRMS is rated for this pole size range
- Need a web inner strap version? — Contact us for alternative EZ Squeeze™ configurations with web inner straps
Frequently Asked Questions
What is the EZ Squeeze™ 490DRMS used for?
The 490DRMS is a wood pole fall restrictor designed for linemen climbing distribution poles. It provides fall restriction capability while allowing efficient one-handed strap adjustment on the pole.
How does the BuckHorn™ Adjustment Lever work?
The BuckHorn™ is a patented lever integrated with the WebGrab™ that allows one-handed outer strap adjustment without removing your weight from the device. A flick of the wrist tightens the strap; tapping the BuckHorn™ releases it to lengthen.
What is the user weight capacity?
The 490DRMS is rated for a 350 lb user when fully equipped, and meets ASTM F887 requirements.
Can left-handed climbers use this device?
Yes — the EZ Squeeze™ is designed to be easily used by both right- and left-handed climbers.
What pole sizes does the 490DRMS fit?
The 490DRMS fits poles up to Class 1, 65' with up to 50" circumference.
What does the red warning center indicate?
The red warning center is a visual wear indicator built into the straps. When it becomes visible through the outer material, it signals that the strap has experienced excessive wear and should be inspected or replaced.
