The Fluke TL175 TwistGuard Test Leads set the standard for electrical safety and durability. The patented TwistGuard extendable tip shroud meets the highest electrical safety requirements, reducing tip exposure while maintaining the versatility needed for most measurements. The new WearGuard lead wire wear indication system uses a two-layer silicone insulation design — when leads are nicked, scuffed, or damaged, the inner contrasting color is exposed to signal that replacement is needed. Double-insulated silicone leads withstand high temperatures and remain flexible in cold conditions. Extra-heavy duty strain relief on both ends has been tested beyond 30,000 bends without failure.
Key Features
- Patented TwistGuard Extendable Tip Shroud — Reduces tip exposure to meet the highest electrical safety requirements
- WearGuard Wear Indication — Two-layer silicone insulation reveals inner contrasting color when leads are damaged and need replacement
- Double-Insulated Silicone Leads — Withstands high temperatures and remains flexible in cold conditions
- Extra-Heavy Duty Strain Relief — Tested beyond 30,000 bends without failure on both probe and plug ends
- Universal 4mm Shrouded Banana Plugs — Compatible with all instruments accepting standard 4mm shrouded banana plugs
- Removable 4mm Lantern Tips — Thread onto the lead tip for additional versatility
- 2mm Diameter Probe Tips
Safety Ratings
- CAT II 1000V
- CAT III 1000V
- CAT IV 600V
- 10A Maximum
- Pollution Degree 2
Specifications
- Brand: Fluke
- Model: TL175
- Probe Tip Diameter: 2mm
- Exposed Probe Tip Length: 4mm to 19mm (0.16" to 0.75")
- Temperature Range: -20°C to 55°C (-4°F to 131°F)
- Altitude Rating: 2,000m (6,562 ft)
- Weight: 0.26 lb
- Dimensions: 11.93" L x 3.94" W x 1.26" H
- Warranty: 1 year
- Country of Origin: Taiwan
- UPC: 095969521543
- MPN: TL175
In the Box
- TL175 TwistGuard test leads (pair)
- Removable 4mm lantern tips
Frequently Asked Questions

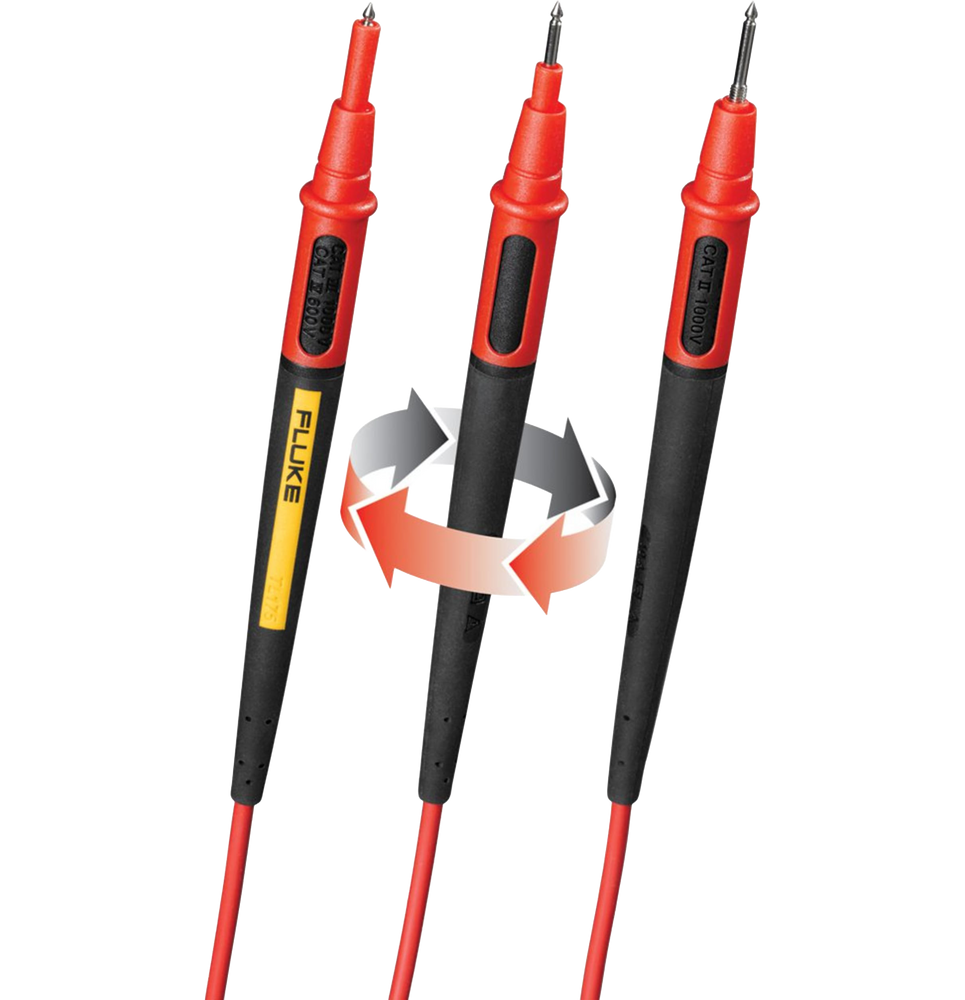

What is the TwistGuard tip shroud?
The TwistGuard is a patented extendable tip shroud that reduces the amount of exposed probe tip during measurements, meeting the highest electrical safety requirements. You can extend or retract the shroud to adjust tip exposure for different measurement scenarios.
What does WearGuard wear indication do?
WearGuard is a two-layer silicone insulation system. The inner layer is a contrasting color — if the outer insulation is nicked, scuffed, or damaged, the inner color becomes visible, giving you a clear visual signal that the leads need to be replaced before they become a safety hazard.
What instruments are these leads compatible with?
The TL175 uses universal 4mm shrouded banana plugs, making them compatible with all instruments that accept standard 4mm shrouded banana plugs, including most Fluke multimeters and clamp meters.
What safety category rating do these leads carry?
The Fluke TL175 is rated CAT II 1000V, CAT III 1000V, and CAT IV 600V, making them suitable for a wide range of electrical measurement applications from residential to industrial environments.
