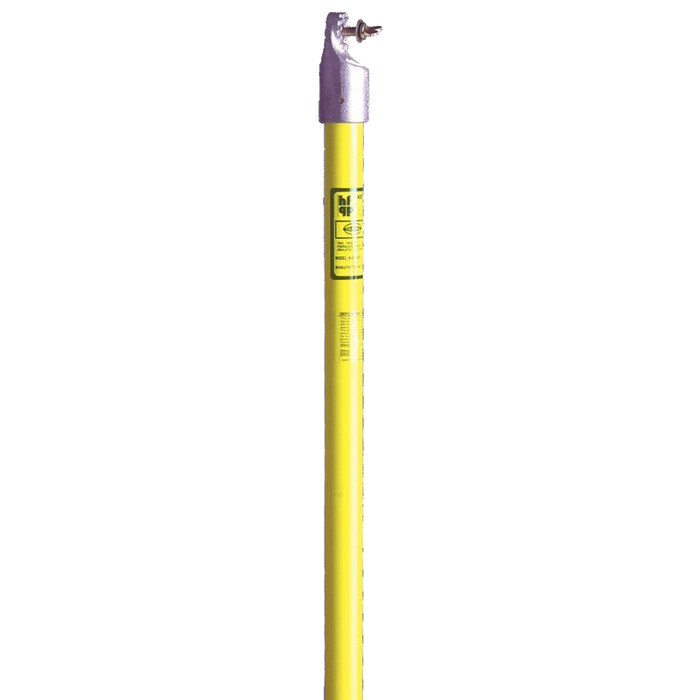

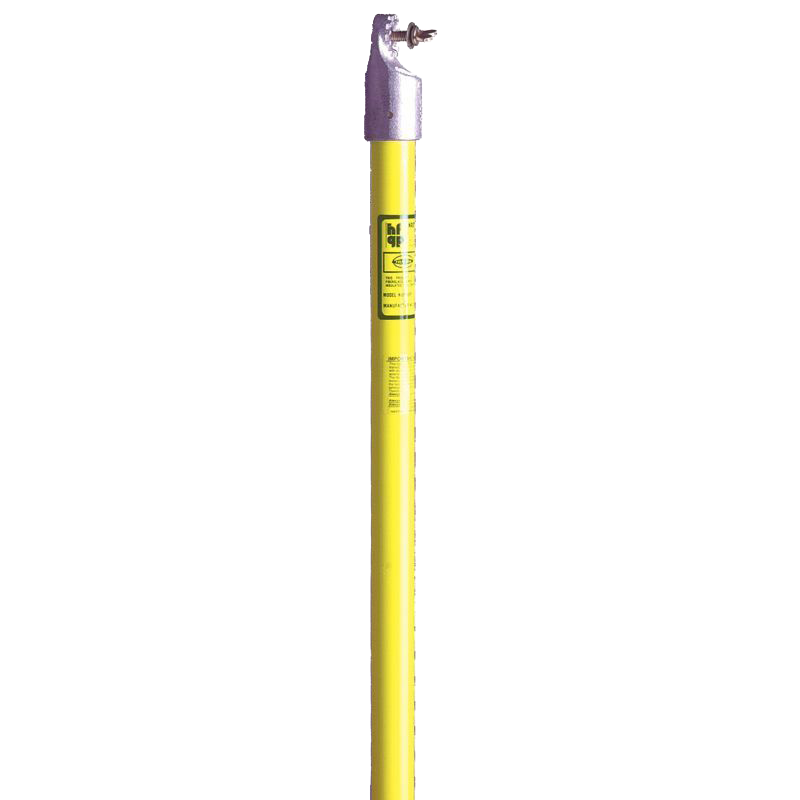

The Hastings 567-8 Universal Head Hot Stick is an 8-foot, 1.25" diameter live-line tool built for utility lineworkers who need universal tool compatibility and proven dielectric performance. Constructed from Hastings' proprietary Epoxiglas® and lightweight aluminum castings, the 567-8 features a spline attachment point that adapts with any universal tool head. Every stick leaves the Hastings factory having passed a dielectric test at 100KV per foot in accordance with ASTM, OSHA, and IEC standards.
Key Features
- Universal tool compatibility — spline attachment point adapts with any universal hot stick tool head
- Epoxiglas® construction — Hastings' proprietary fiberglass composite for superior dielectric strength and durability
- Lightweight aluminum castings — reduces overall tool weight without sacrificing structural integrity
- Heavy-duty end cap — molded nubs, ball shape, and thick walls cushion repeated impacts of normal use; black EVA material provides optimum abrasion and cut resistance
- Dielectric tested at 100KV/ft — every stick tested per ASTM, OSHA, and IEC industry standards before leaving the factory
Specifications
| Part No. | Length | Diameter | Weight | Attachment | Construction | Dielectric Test |
|---|---|---|---|---|---|---|
| 567-8 | 8 ft | 1.25" | 8 lb | Spline (universal) | Epoxiglas® & aluminum | 100KV/ft (ASTM/OSHA/IEC) |
Quick Decision Guide
- Need universal tool head compatibility? — Yes, the spline attachment works with any universal hot stick tool
- Require certified dielectric testing? — Every 567-8 is tested at 100KV/ft per ASTM, OSHA, and IEC standards
- Working at 8-foot reach? — This stick is fixed at 8' length; consider other Hastings models for different lengths
- Concerned about end cap durability? — The heavy-duty EVA end cap is designed to withstand rough field conditions
Frequently Asked Questions
What attachment type does the Hastings 567-8 use?
The 567-8 uses a spline attachment point, making it compatible with any universal hot stick tool head.
What is Epoxiglas®?
Epoxiglas® is Hastings' proprietary fiberglass-epoxy composite material, engineered for high dielectric strength, durability, and light weight in live-line applications.
Is this stick dielectric tested?
Yes — every Hastings hot stick is dielectric tested at 100KV per foot in accordance with ASTM, OSHA, and IEC industry standards before leaving the factory.
What is the diameter and length of the 567-8?
The 567-8 is 8 feet long with a 1.25" diameter.
What material is the end cap made from?
The end cap is black ethylene vinyl acetate (EVA) — molded with nubs and thick walls for impact cushioning and abrasion resistance.
