Milwaukee PACKOUT Rack 48-21-8000 Sliding Drawers Steel Modular Storage

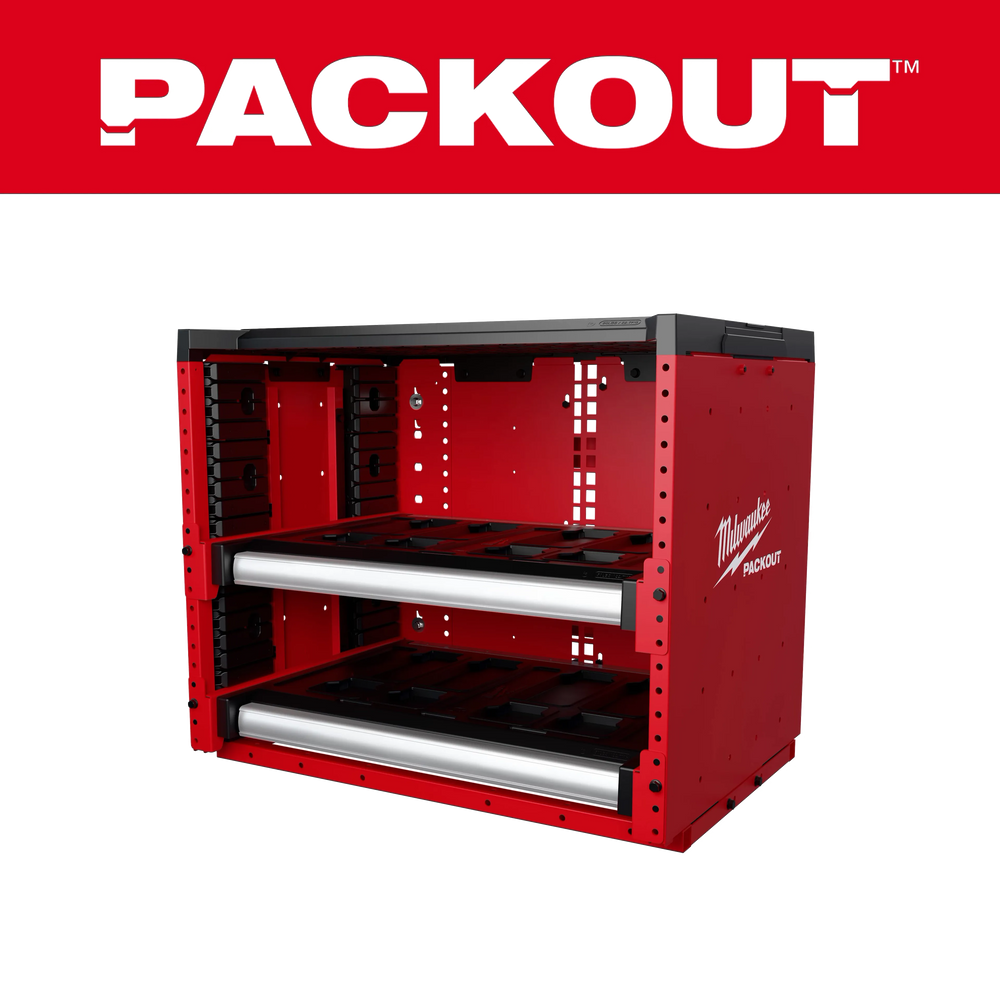

The Milwaukee PACKOUT Rack (48-21-8000) is a steel-body modular storage rack with sliding drawers that provide access to all stored PACKOUT components without unstacking. Drawer height is fully adjustable, and all PACKOUT components connect to and fit inside the drawers for a completely customizable layout. Stack up to three Racks high on the PACKOUT Rack Frame (48-21-8010) or PACKOUT Rack Kit (48-21-8070) for van installs, or place an individual Rack on a flat surface and tether it to a wall for shop or garage use. The top plate provides additional storage for all PACKOUT components. 50 lb drawer capacity in transit. Part of Milwaukee’s PACKOUT Modular Storage System with over 125 compatible solutions. 3-year limited warranty.

DOES NOT QUALIFY FOR FREE SHIPPING

Key Features

• Sliding Drawers — Access all PACKOUT storage without unstacking; drawers slide out fully for complete visibility and access
• Adjustable Drawer Height — Customize the drawer layout to fit the specific PACKOUT components and cargo you carry
• 50 lb Drawer Capacity in Transit — Rated for 50 lb per drawer when in motion in a vehicle
• Drawers Stay Securely Closed — Positive latching keeps drawers closed during transport
• Durable Steel Body — Steel construction for long-term jobsite and vehicle durability
• Top Plate Storage — Top plate connects with all PACKOUT components for additional stacked storage above the rack
• Stack Up to 3 High — Stack multiple Racks on the PACKOUT Rack Frame or Rack Kit; expand side-by-side across a wall to accommodate fleet or shop needs

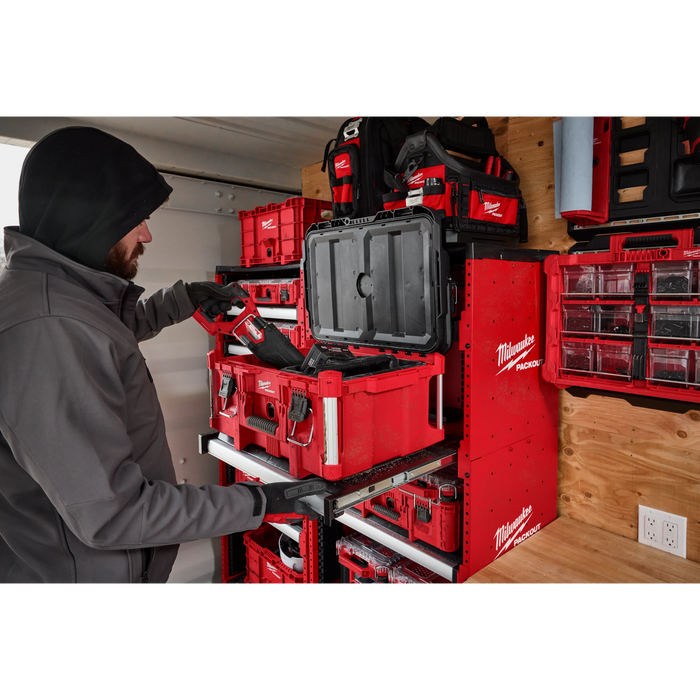

• Van Compatible — For use in vans with PACKOUT Rack Frame (48-21-8010) or PACKOUT Rack Kit (48-21-8070)
• Wall-Tetherable — Individual Rack can be placed on a flat surface and tethered to a wall for fixed shop or garage installation
• Modular Connectivity — Compatible with all PACKOUT components
• 3-Year Limited Warranty

Specifications

• Brand: Milwaukee
• Model: 48-21-8000
• Body Material: Steel
• Drawer Capacity (Transit): 50 lb per drawer
• Dimensions: 27.3" W × 21" L × 22" H
• Weight: 86 lb
• Van Rack Frame: PACKOUT Rack Frame (48-21-8010) / PACKOUT Rack Kit (48-21-8070)
• System Compatibility: All PACKOUT Modular Storage components
• Warranty: 3-year limited
• UPC: 045242276462
• MPN: 48-21-8000

Frequently Asked Questions

What is the difference between the PACKOUT Rack (48-21-8000), the Rack Frame (48-21-8010), and the Rack Kit (48-21-8070)?
The PACKOUT Rack (48-21-8000) is the drawer unit itself — the storage rack with sliding drawers and the top plate. It can be used standalone on a flat surface or tethered to a wall. The PACKOUT Rack Frame (48-21-8010) is the vehicle mounting frame that installs in a van or work vehicle, into which one or more Racks slide and lock for in-vehicle use. The PACKOUT Rack Kit (48-21-8070) is a bundle that includes both the Rack and the Frame together. If you are setting up a van build, you need the Rack Frame or Rack Kit — the Rack alone does not include the vehicle mounting hardware.

How many PACKOUT Racks can be stacked together?
Up to three PACKOUT Racks can be stacked vertically on the PACKOUT Rack Frame. Side-by-side expansion is also supported — multiple Rack Frame installations can be mounted across a van wall or shop wall to create a full wall storage system. For standalone floor or shop use, the Rack can be placed on any flat surface and tethered to a wall for stability.

Do PACKOUT tool boxes and organizers fit inside the PACKOUT Rack drawers?
Yes — PACKOUT components including tool boxes, organizers, and other PACKOUT units connect to the drawers and fit inside the rack. The drawer height is adjustable to accommodate different PACKOUT component heights. This is the key advantage of the Rack system: instead of stacking PACKOUT units and having to unstack to access lower components, the sliding drawers bring any component to the front with a single pull.

What is the 50 lb transit capacity and does it apply to static use as well?
The 50 lb per drawer capacity is the rated load for in-transit use — when the rack is installed in a moving vehicle and subjected to road vibration, braking, and cornering forces. Static capacity (in a fixed shop or garage installation) is typically higher, but Milwaukee does not publish a separate static rating. For in-vehicle use, do not exceed 50 lb per drawer. For shop use, treat 50 lb as a conservative guideline unless Milwaukee publishes a higher static figure for your specific installation configuration.
