Milwaukee PACKOUT Large Wall Plate 48-22-8497 150lb Shop 75lb Vehicle PACKOUT Compatible

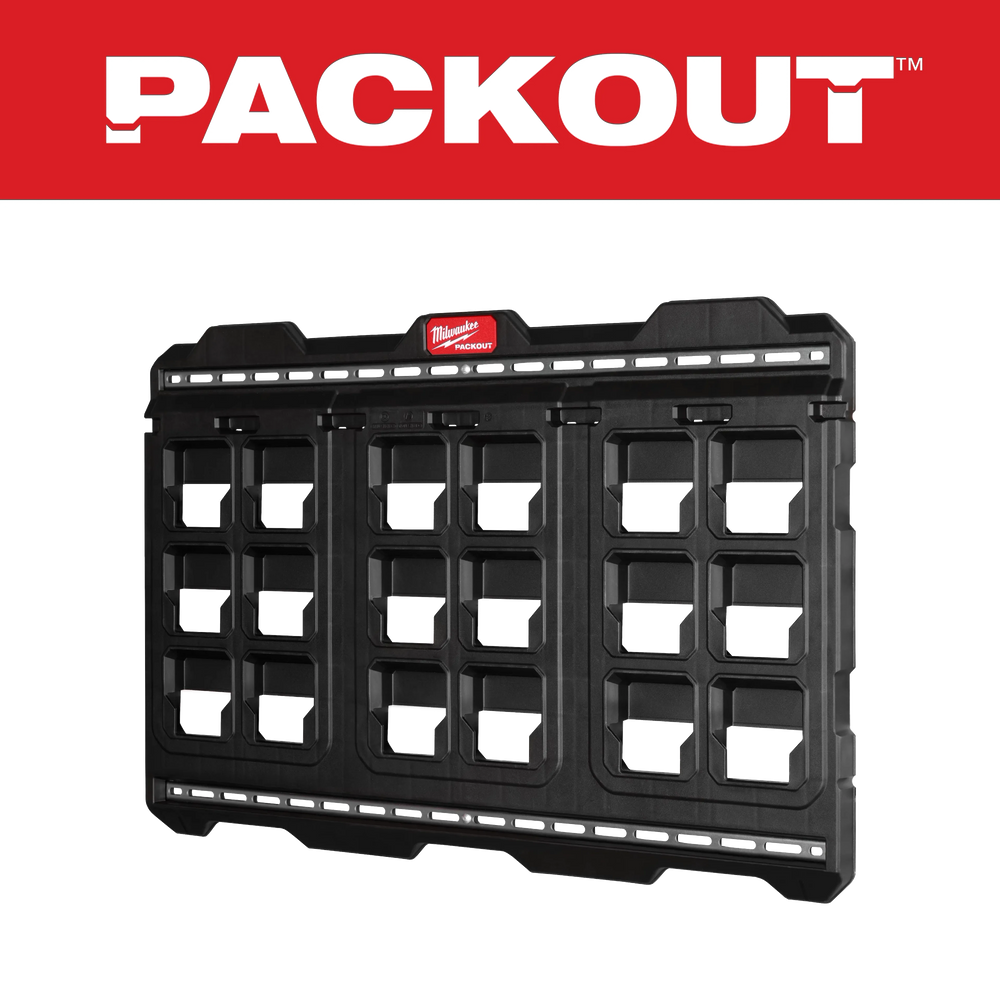

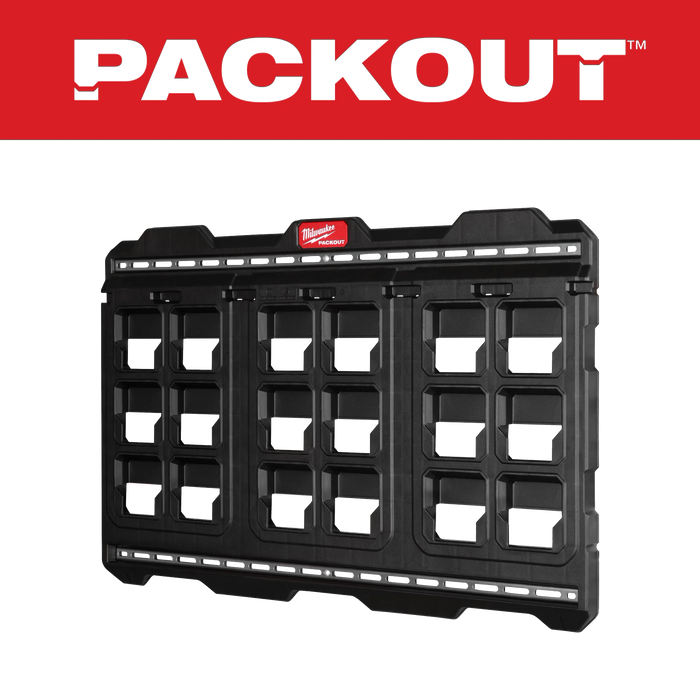

The Milwaukee PACKOUT Large Wall Plate (48-22-8497) is a wall-mounted base for building out a PACKOUT Modular Storage System in a shop, garage, or service vehicle. Metal-reinforced mounting tracks and impact-resistant polymer construction ensure secure attachment across shop, transit, and jobsite environments. Quick-alignment tabs simplify installing multiple wall plates in rows and columns for a fully customized wall storage layout. Supports 150 lb when shop-mounted and 75 lb when vehicle-mounted. All PACKOUT components — tool boxes, organizers, battery racks, and accessories — connect directly to the wall plate. Limited lifetime warranty.

Key Features

• Quick-Alignment Tabs — Built-in tabs simplify alignment when installing multiple wall plates side-by-side or stacked in rows for a larger wall storage grid
• Metal-Reinforced Mounting Tracks — Steel-reinforced tracks provide the structural strength needed to hold PACKOUT loads securely in shop and vehicle environments
• 150 lb Shop Capacity / 75 lb Vehicle Capacity — Rated for heavy PACKOUT loads when wall-mounted in a fixed shop installation; 75 lb when mounted in a vehicle
• Impact-Resistant Polymer Body — Withstands harsh shop and jobsite conditions
• Modular PACKOUT Connectivity — Accepts all PACKOUT components including tool boxes, organizers, battery racks, and accessories
• Fully Customizable Layout — Install multiple large wall plates to build any size wall storage configuration
• Limited Lifetime Warranty

Specifications

• Brand: Milwaukee
• Model: 48-22-8497
• Weight Capacity (Shop): 150 lb
• Weight Capacity (Vehicle): 75 lb
• Dimensions: 30.75" W × 20" H × 1.2" D
• Weight: 4.5 lb
• Construction: Metal-reinforced mounting tracks, impact-resistant polymer
• System Compatibility: All PACKOUT components
• Includes: (1) PACKOUT Large Wall Plate
• Warranty: Limited lifetime
• UPC: 045242817559
• MPN: 48-22-8497

Frequently Asked Questions

What is the difference between the PACKOUT Large Wall Plate and the standard PACKOUT Wall Plate?
The Large Wall Plate (48-22-8497) is Milwaukee’s bigger wall mounting option at 30.75" W × 20" H, designed to support more PACKOUT units per plate and span a larger section of wall per installation. The standard Wall Plate is smaller and suited for tighter spaces or single-unit mounting. If you’re building out a full shop wall storage system with multiple PACKOUT tool boxes and organizers, the Large Wall Plate covers more area per mount point and reduces the number of individual plates needed. Choose the standard plate for focused single-zone storage or vehicle mounting where space is limited.

What hardware is needed to install the wall plate, and what surfaces can it be mounted to?
The PACKOUT Large Wall Plate is designed to be fastened directly to wall studs or a solid backing surface using screws (not included). For the full 150 lb weight capacity rating, Milwaukee recommends mounting into wood studs or equivalent structural backing at the recommended fastener spacing. Mounting into drywall alone without stud backing will not achieve the rated capacity and is not recommended for heavy PACKOUT loads. The plate can also be mounted to metal surfaces in service vehicles using appropriate fasteners for the vehicle’s floor or wall material.

Can multiple large wall plates be installed side by side to create a larger wall system?
Yes — this is the intended use case. The quick-alignment tabs are specifically designed to simplify aligning and installing multiple wall plates in rows and columns to build a continuous wall storage grid. Each plate is rated independently at 150 lb (shop), so a two-plate installation supports up to 300 lb of PACKOUT components. The PACKOUT interface is consistent across all plates, so components can be placed across any plate in the grid without restriction.

Does the 75 lb vehicle rating apply to driving conditions or only stationary vehicle storage?
The 75 lb rating for vehicle mounting accounts for the dynamic loads of vehicle movement — acceleration, braking, cornering, and road vibration — which impose forces on the mounted components beyond their static weight. This rating applies to driving conditions. Exceeding the 75 lb vehicle rating risks the wall plate detaching from the mounting surface or the PACKOUT components breaking loose during transit, which creates a serious safety hazard. Distribute heavy PACKOUT loads across multiple vehicle-mounted wall plates to stay within the per-plate rating.
