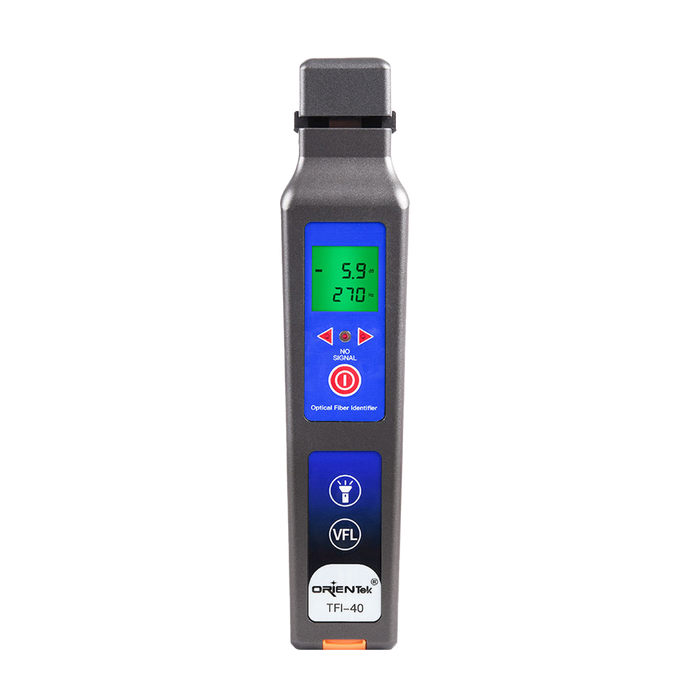

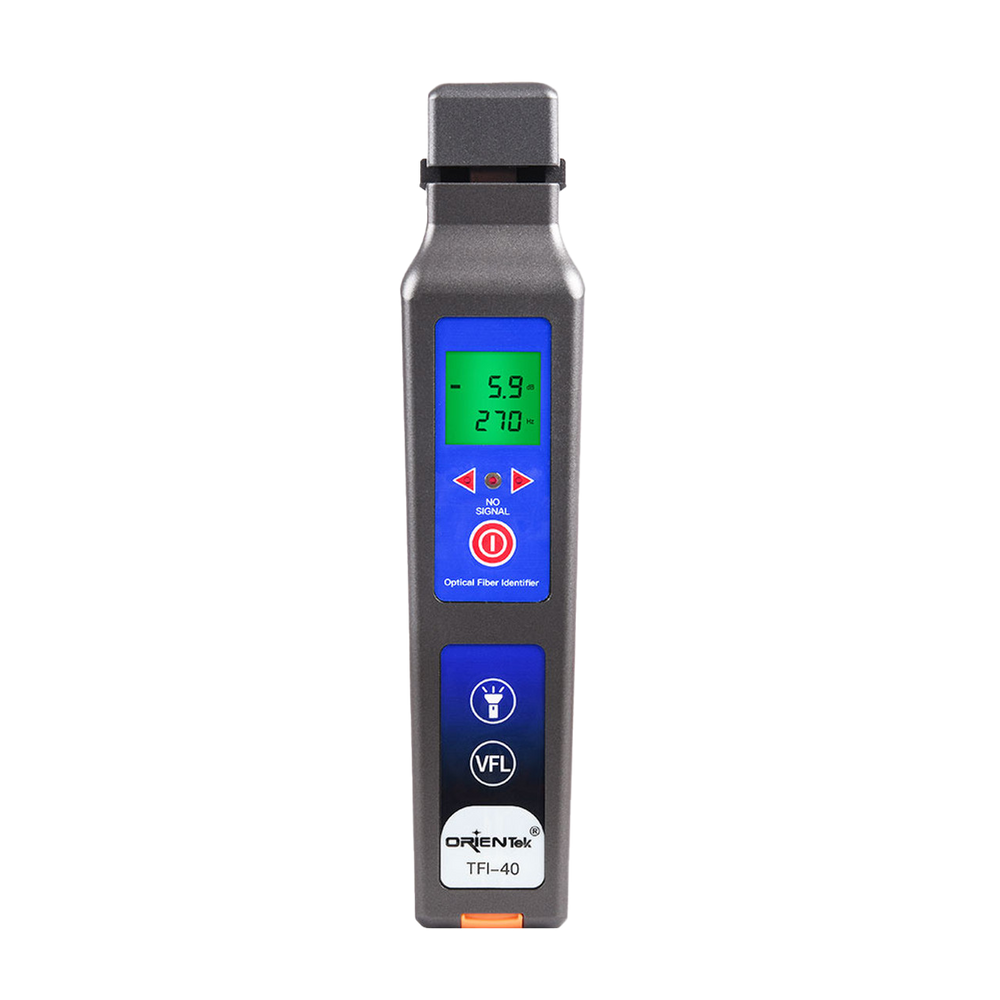

The Orientek Optical Fiber Identifier is a must-have tool for fiber optic maintenance. With high-precision identification and non-destructive detection, it quickly recognizes single-mode and multimode fibers using 3 signal frequencies. Audible alerts and directional lights provide efficient and accurate identification.
-
Features
- Suitable for 0.25/0.9/2.0/3.0mm fibers
- Test sensitivity: -40dBm to 10 dBm.
- Configure VFL function, 2.5mm universal
- LED backlight display, suitable for various environments without auxiliary lighting.
- Easy to carry, no need to replace the chucks.
- Be equipped with LED light,more con- venient to check the fibers in the dark
- Test distance up to 5km, high stability
- Strong light source, strong penetrating power
-
Highlights
- Bare fiber cable
- 0.9mm fiber cable
- 2.0/3.0mm jump cable
Technical Description
- Wavelength Recognition Range: 800nm to 1700nm
- Signal Recognition Type: CW,270 Hz ± 5%,1 kHz ± 5%,2 kHz ± 5%
- Detector Type: φ1mm InGaAs 2 pcs
- Adapted fiber type: Universal Holder for φ0.25(Bare Fiber),φ0.9,φ2.0,φ3.0 Cable
- Signal Direction: Left & Right LED
- Optical Power Reading Range: -40 dBm to 10 dBm
- Signal Frequency Range: 270Hz,1kHz,2kHz
- Power Type: AA*2
- Operating Temperature Range: -10℃ to 60℃
- Storage Temperature Range: -25℃ to 70℃
- VFL function:
- Power range: 1mW
- Testing distance: 3-5km
- Wavelength: 650nm
- Laser type: LD
- LED light: Support
