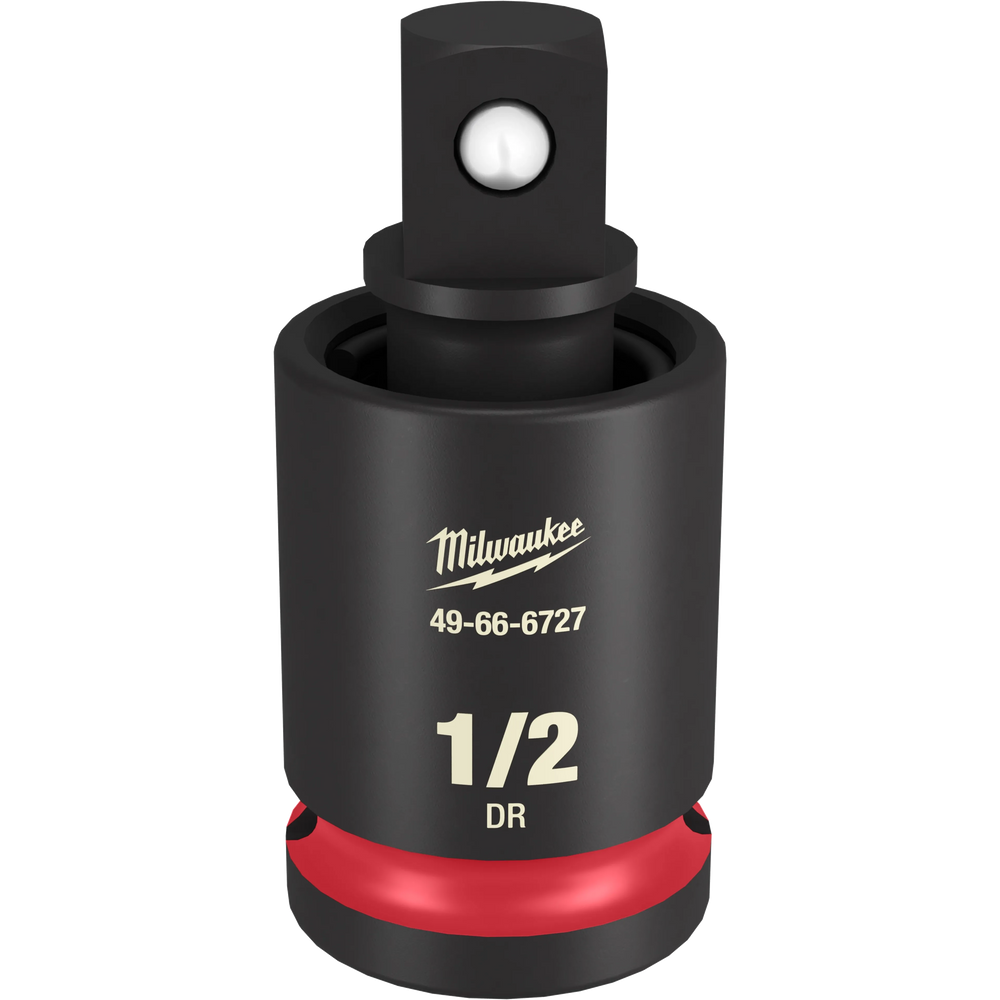

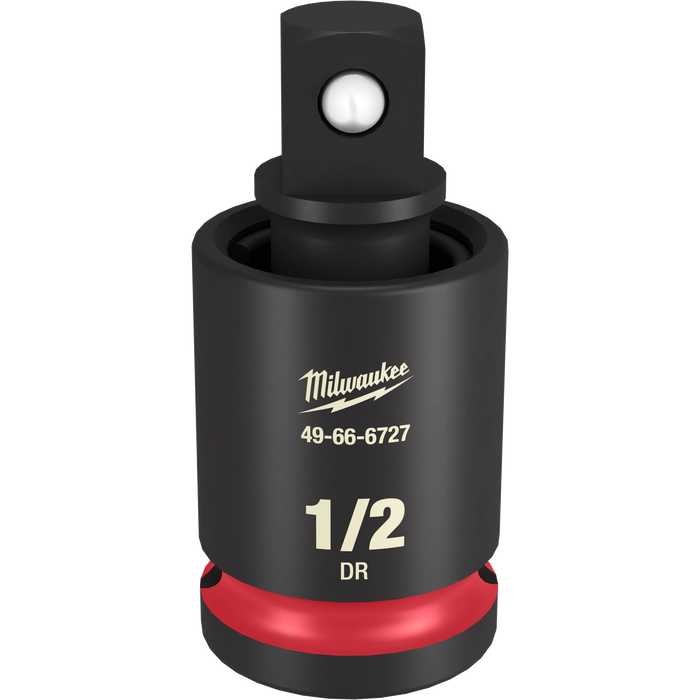

Milwaukee Shockwave Impact Duty 49-66-6727 1/2 in Drive Universal Joint
Reach fasteners that are difficult to approach straight on with the Milwaukee Shockwave Impact Duty 49-66-6727 1/2 in Drive Universal Joint. Its 15-degree swivel helps navigate restricted access during equipment maintenance, while forged impact steel and a pinless design provide durability for impact applications.
Connect the joint between your compatible 1/2 in drive impact wrench and impact socket when surrounding equipment limits alignment. Laser-etched markings make drive-size identification straightforward, and the ball detent helps retain the socket while you position the tool.
Key Features
- 15-degree swivel for access to hard-to-reach fasteners.
- Optimized for 1/2 in drive impact wrenches and impact sockets.
- Forged impact steel for durability in high-torque applications.
- Pinless design for increased durability.
- Ball detent for impact socket retention.
- Dual-hole design and ring groove for easier attachment and removal.
- Laser-etched drive-size markings and part number.
- Meets ASME industry standards.
Specifications
- Brand: Milwaukee
- Series: Shockwave Impact Duty
- Model: 49-66-6727
- Input drive: 1/2 in square
- Output drive: 1/2 in square
- Swivel: 15 degrees
- Application: Impact
- Material: Forged impact steel
- Design: Pinless
- Listed length: 2.48 in
- Listed width: 1.18 in
- Listed height: 1.18 in
- Weight: 0.43 lb
- Color: Black
- Quantity: 1 universal joint
- ASTM F1505-01 insulation compliance: Not tested
Frequently Asked Questions
Does this joint change the socket drive size?
No. Both ends are 1/2 in square drive. It adds swivel access between a compatible tool and socket rather than converting to a different drive size.
Can I use it with an impact wrench?
Yes. It is designed for 1/2 in drive impact wrenches and impact sockets. Follow the manufacturer's operating limits for every component, fully engage the connections and inspect the joint before use.
How much can it swivel?
The specified swivel is 15 degrees, helping reach fasteners where straight-on alignment is restricted. Do not force the joint beyond its designed movement or assume it provides the range of a hand-tool universal joint.
Is it electrically insulated for utility work?
No insulation rating is established in the supplied specifications; ASTM F1505-01 compliance is listed as not tested. Do not use this steel joint as protection from energized conductors. Follow your crew's electrical safety procedures and use appropriately rated equipment where required.
