Petzl KNEE ASCENT Mounting Kit with Elastic Band – For KNEE ASCENT Kit & KNEE GRAB (B022EA00)

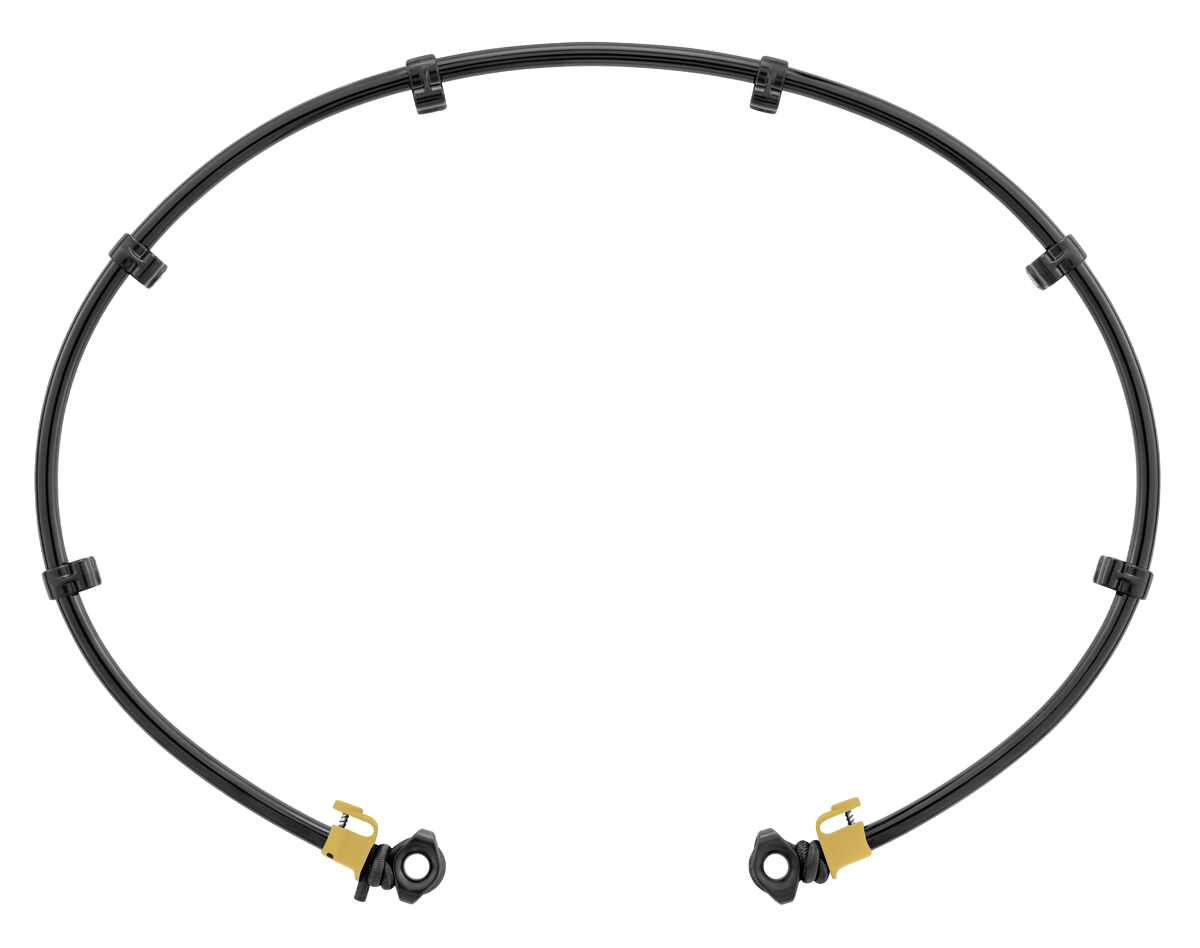

The Petzl B022EA00 KNEE ASCENT Mounting Kit is the waistbelt mounting system for the KNEE ASCENT kit and KNEE GRAB knee ascender. It includes a plastic tube that fixes around the waistbelt via textile slots and a system of clips screwed into the bias webbing, along with an elastic band. Use this kit to add or replace the mounting system on harnesses that don’t have integrated textile loops, or as a spare part for an existing KNEE ASCENT setup.
Key Features
- Compatible with KNEE ASCENT kit (B022AA00) and KNEE GRAB knee ascender — serves as the mounting system for both SRS ascent accessories
- Plastic tube with clip-screw mounting — fixes securely around the waistbelt via textile slots and clips screwed into the bias webbing
- Elastic band included — provides the tensioned connection between the waistbelt tube and the knee ascender for efficient SRS ascent
- Lightweight — 80 g; adds minimal weight to your climbing setup
- Spare part compatible — available as an individual component for replacing worn or damaged mounting hardware without replacing the full KNEE ASCENT kit
- 3-year guarantee
Specifications
| Attribute | Detail |
|---|---|
| Reference | B022EA00 |
| Weight | 80 g |
| Includes | Plastic tube, clip screws, elastic band |
| Mounting Method | Textile slots + clips screwed into bias webbing |
| Compatible With | Petzl KNEE ASCENT Kit (B022AA00), KNEE GRAB knee ascender |
| Guarantee | 3 years |
Quick Decision Guide
- Using a KNEE ASCENT kit or KNEE GRAB on a harness without integrated textile loops? — The B022EA00 provides the clip-screw mounting system to install the tube on any compatible waistbelt
- Replacing a worn or damaged mounting tube or elastic band? — The B022EA00 is available as a standalone spare part so you don’t need to replace the full KNEE ASCENT kit
- Need the complete KNEE ASCENT system? — See the Petzl KNEE ASCENT KIT (B022AA00) which includes the PANTIN clamp, elastic band, tube, foot loop, and MINO carabiners
Frequently Asked Questions
What is the KNEE ASCENT Mounting Kit used for?
The B022EA00 is the waistbelt mounting system for the KNEE ASCENT kit and KNEE GRAB knee ascender. It provides the plastic tube and elastic band that attach to the waistbelt, keeping the knee ascender positioned correctly during SRS rope ascent.
How does the mounting kit attach to the harness?
The plastic tube fixes around the waistbelt via textile slots and a system of clips screwed into the bias webbing of the harness — compatible with harnesses that don’t have integrated textile loops for the tube.
Is the elastic band included?
Yes — the B022EA00 includes the elastic band along with the plastic tube and clip screws.
Do I need this if I already have the KNEE ASCENT KIT (B022AA00)?
The full KNEE ASCENT KIT (B022AA00) already includes the tube and elastic band. The B022EA00 is primarily used as a spare part when those components wear out, or to add the mounting system to a harness that requires the clip-screw installation method.
